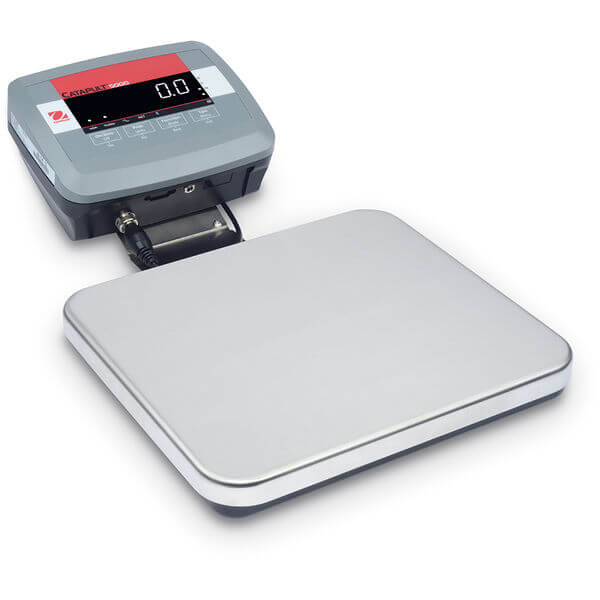

Catapult® 5000
The Heavy-Duty Shipping Scale that Combines Utility and Economy

C51XE200R

Maximum Capacity 400 lb (200 kg)
Readability 0.2 lb (100 g)
Platform Size 12.2 in x 10.8 in (310 mm x 270 mm)
Item Number: 30369652
Overview
The low-profile Catapult 5000 is an economical shipping scale that's ideal for your shipping and receiving needs, as well as other general weighing applications. A sturdy stainless steel platform that can withstand heavy loads, an easy-to-read LED screen and an optional rechargeable battery make Catapult 5000 a great scale for small businesses, mail rooms, warehouses and even industrial environments.
Applications
Weighing, Dynamic/Display Hold, Accumulation
Display
Light Emitting Diode (LED) Display
Operation
AC adapter (included) and rechargeable battery (not included)
Communication
RS232 (available as an accessory)
Construction
ABS housing, stainless steel platform, mounting bracket, painted steel frame
Design Features
Low-profile design, hardware configuration lockout switch, user-selectable span calibration points, averaging level, auto zero-tracking, auto shut-off
Specifications
Maximum Capacity 400 lb (200 kg)
Readability 0.2 lb (100 g)
Platform Size 12.2 in x 10.8 in (310 mm x 270 mm)
Battery Life 72 Hours with Rechargeable Battery
Communication RS232 (Available as an Accessory)
Dimensions 19.7 in x 5.2 in x 12.2 in (500 mm x 132 mm x 310 mm) (LxHxW)
Display Red LED
In-Use Cover Available as an Accessory
Legal for Trade Not Applicable
Net Weight 8.8 lb (4 kg)
Outputs Not Applicable
Platform Construction Stainless Steel
Power Rechargeable Battery (Not Included);AC Adapter (Included)
Protection Rating Not Applicable
Second Scale Input Not Applicable
Tare Range To capacity by subtraction
Transportation Case Not Applicable
Units of Measurement Gram;Kilogram;Pound
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Accessories

Item Number

80500525

Description

Cable RS232 IBM 9P Male-to-Female

Item Number

30064202

Description

Printer, Impact, SF40A, EU
