Frontier™ Rotors
Offering Flexibility to Maximize Sample Preparation

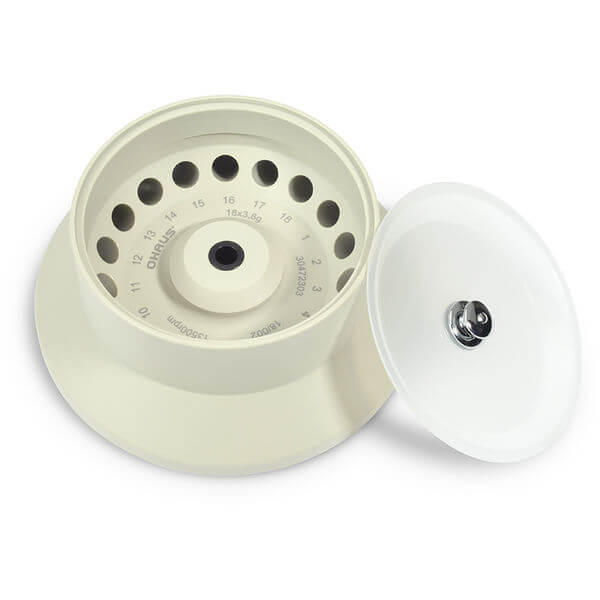

R-A18x2SC/13

Maximum Speed 13,500 rpm
Maximum Relative Centrifuge Force (x g) 15,484 g
Maximum Capacity (Rotor) 18 x 2.0 ml
Item Number: 30472303
Overview
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
Applications
Centrifugation Accessory
Display
N/A
Operation
N/A
Communication
N/A
Construction
Aluminum or polypropylene material
Design Features
Easy-installation
Specifications
Maximum Speed 13,500 rpm
Maximum Relative Centrifuge Force (x g) 15,484 g
Maximum Capacity (Rotor) 18 x 2.0 ml
Tube diameter without adapter 12 mm / 2.0 ml,1.5 ml
Outer/Inner Radius 7.6 cm
Rotor Style Angle
Aerosol tight Not applicable
Acceleration Time (sec) 13 / 109
Angle 45°
Compatible Models FC5513
Deceleration Time (sec) 14 / 121
Dimensions 6.14 in (15.6 cm)
Maximum loading weight 68 g
Net Weight 0.79 lb (0.36 kg)
Working Environment -4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%)
