View All Products   |   Centrifuges   /   Frontier™ 5000 Series Mini   /   FC5306
Enlarge

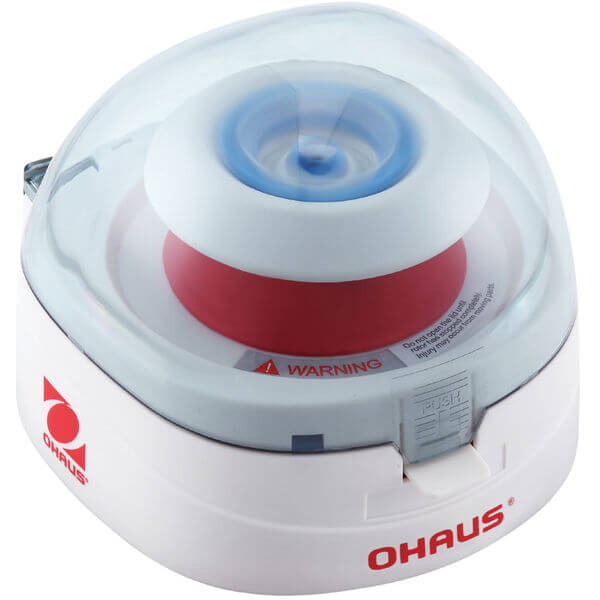

Frontier™ 5000 Series Mini
Powerful and Convenient Mini Centrifuge for Simple and Quick Life Science Separation Applications!

FC5306

Speed Range 0 rpm – 6,000 rpm
Maximum Relative Centrifuge Force (x g) 2,000 g
Maximum Capacity(Rotor) 8 x 1.5 / 2.0 ml
Item Number: 30134156
Request a Quote ADD TO QUOTE LIST
View All Frontier™ 5000 Series Mini Models
Overview
The OHAUS Frontier 5306 is a small but powerful mini centrifuge for simple and quick liquid separation. With an 8 place 1.5/2mL tube rotor as well as a 4 place PCR 8-strip tube rotor, Frontier™ 5306 can accommodate 0.2mL 8 strip tubes or 32 individual PCR tubes. With the included adapter, 0.2mL and 0.5mL tubes can also be accommodated in the 8 place tube rotor. This centrifuge provides quiet, safe, and easy operation for your everyday quick spin-down applications.
Applications
Centrifugation
Display
N/A
Operation
AC adapter (included)
Communication
N/A
Construction
Brushless quiet motor, auto shut-off safety switches
Design Features
One-touch operation
Specifications
Speed Range 0 rpm – 6,000 rpm
Maximum Relative Centrifuge Force (x g) 2,000 g
Maximum Capacity(Rotor) 8 x 1.5 / 2.0 ml
Program memories 0
Rotor In Package Angle rotor 4 x 8 place PCR Strips;Angle 8 x 1.5 ml / 2.0 ml
Acceleration Gear 1
Deceleration Gear 2
Dimensions 6.6 in x 5 in x 5.9 in (168 mm x 128 mm x 150 mm) (LxHxW)
Display No display
Lid lock Mechanical
Net Weight 2.3 lb (1.1 kg)
Noise Level ≤60±2 dB(A)
Power 101 - 240 V
Pre-cool time Not applicable
Rotor Compatibility Angle 8 x 1.5 ml / 2.0 ml;Angle 4 x 8 place PCR Strips
Rotor Recognition Method Not Applicable
Running Time Continous
Safety Certification CE;TUV;FCC
Working Environment 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
Accessories

Item Number

30129560

Description

Rotor 0.2ml PCR8 x4 FC5306

Request a Quote Add To Quote List Remove From Quote List

Item Number

30129559

Description

Rotor 1.5/2ml x8 FC5306

Request a Quote Add To Quote List Remove From Quote List
