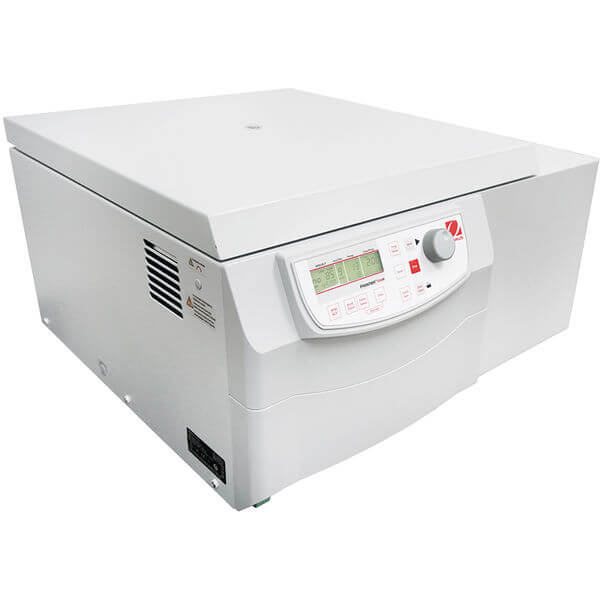

FC5916R 230V

Speed Range	200 rpm – 16,000 rpm
Maximum Relative Centrifuge Force (x g)	26,331 g
Maximum Capacity(Rotor)	4 x 750 ml
Item Number:	30553101

Request a Quote ADD TO QUOTE LIST

View All Frontier™ 5000 Series Multi Pro Models

Overview
Specs
Accessories
Documents

Overview

Frontier 5000 Multi-Pro Centrifuges are designed for universal use in multiple applications in research, industrial, and clinical laboratories and can be combined with our range of rotors and accessories for customized use. Available in 11 models with capacities from 0.2 ml to 4 × 1000 ml - and feature high-speed performance at maximum volume, automatic rotor identification and safety features.

Applications

Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing

Display

Backlit Liquid Crystal Display (LCD)

Operation

Designed to be used with a variety of rotors and accessories

Communication

N/A

Construction

Corrosion-resistant stainless steel chamber with Polycarbonate/ABS plastic lid

Design Features

Ten acceleration & deceleration rates, selection of running time from 10s to 99h 59min or continuous, quick spin, CFC-free refrigeration system, sample temp. indication (refrigerated models), lid-locking system, over-speed protection, dual imbalance sensing

Specifications

Speed Range	200 rpm – 16,000 rpm
Maximum Relative Centrifuge Force (x g)	26,331 g
Maximum Capacity(Rotor)	4 x 750 ml
Refrigeration Range	-4 °F – 104 °F (-20 °C – 40 °C)
Program memories	99
Rotor In Package	Not applicable
Acceleration Gear	10
Deceleration Gear	10
Dimensions	26.4 in x 15.4 in x 28.7 in (670 mm x 390 mm x 730 mm) (LxHxW)
Display	2-line, backlit LCD
Lid lock	Motor driven
Net Weight	260 lb (118 kg)
Noise Level	≤63±2 dB(A)
Power	AC Adapter (Included)
Power Consumption	1,630 W
Pre-cool time	From room temperature to 4℃ ＜ 10min

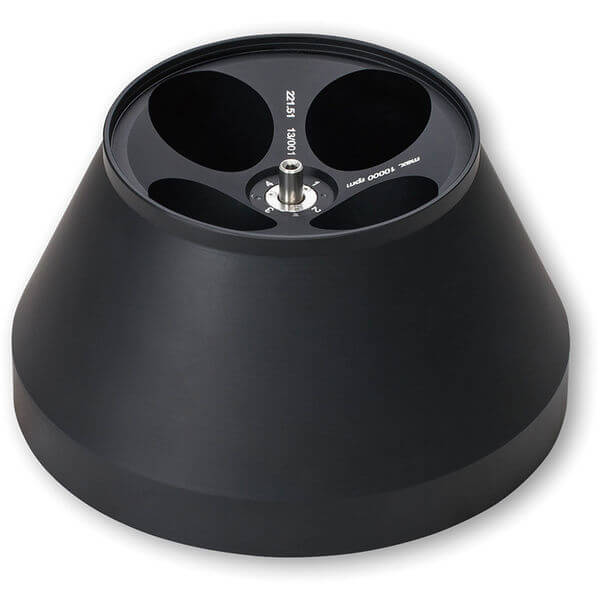

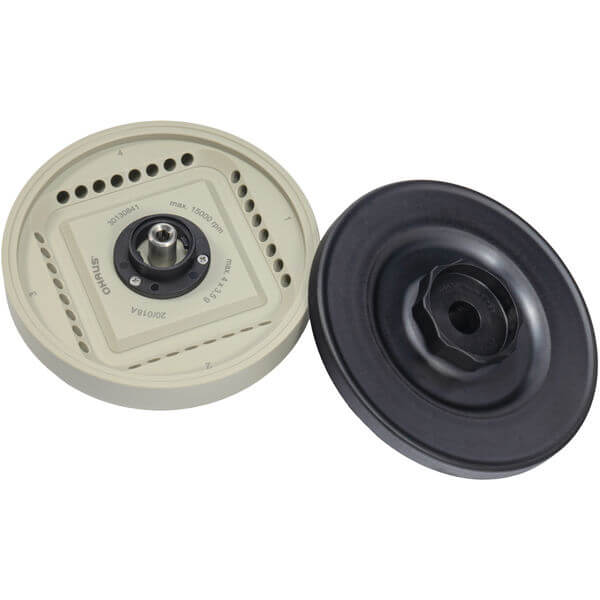

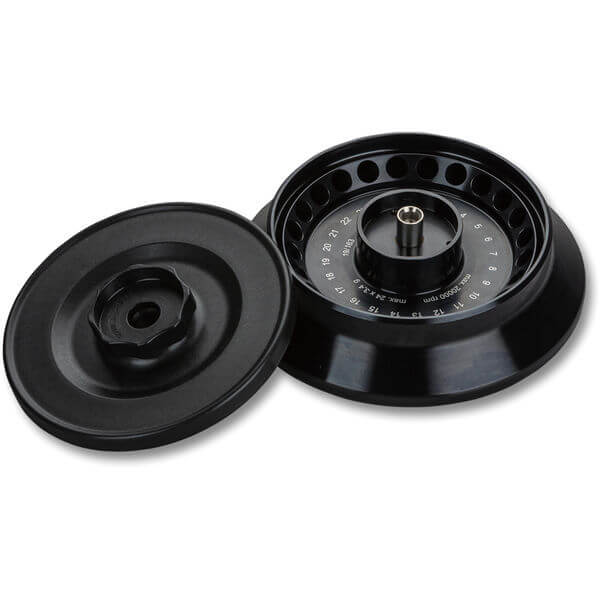

Rotor Compatibility	Angle 4 x 85ml RB ID Hi;Angle 6 x 250 ml FB ID;Angle 6 x 50 ml RB ID Hi;Rotor Angle 24x1.5/2.0ml ID BIOSEALS V1;Angle 30 x 1.5 / 2.0 ml ID Sealable;Angle 4 x 8-w PCR Strip ID;Angle 10 x 50 ml FA ID;Angle 20 x 10 ml RB ID Hi;Swing out 4x750ml ID Sealable;Angle 6 x 85 ml RB ID;Rotor Angle 4x500ml ID;Swing out 2 x 3MTP ID
Rotor Recognition Method	Auto
Running Time	Continous;Quickspin;10 sec to 99 h 59 min 59 sec
Safety Certification	CE;FCC
Working Environment	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
