Frontier™ 5000 Rotors

Offering Flexibility to Maximize Sample Preparation

R-S4X145/4MI

Maximum Speed	4,500 rpm
Maximum Relative Centrifuge Force (x g)	3,350 g
Maximum Capacity(Rotor)	4 x 145 ml
Item Number:	30314822

Request a Quote ADD TO QUOTE LIST

View All Frontier™ 5000 Rotors Models

Overview
Specs
Accessories
Documents

Overview

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

Applications

Centrifugation Accessory

Display

N/A

Operation

N/A

Communication

N/A

Construction

Aluminum or polypropylene material

Design Features

Easy-installation

Specifications

Maximum Speed	4,500 rpm
Maximum Relative Centrifuge Force (x g)	3,350 g
Maximum Capacity(Rotor)	4 x 145 ml
Tube diameter without adapter	N/A
Outer/Inner Radius	148 mm
Rotor Style	Swing out
Aerosol tight	Not applicable
Acceleration Time (sec)	14 / 110
Angle	0-90°
Compatible Models	FC5718R;FC5720R;FC5718;FC5714
Deceleration Time (sec)	14 / 170
Dimensions	11.81 in (300 mm)
Maximum loading weight	1,360 g
Multiple Maximum Speeds	No
Net Weight	3.58 lb (1.62 kg)
Working Environment	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%)

Accessories

Item Number

Description

Rack 10x1.5/2.0ml D11mm 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x100ml D46mm RB 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x145ml D50mm FB 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x15ml D17mm Rim 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x25ml D25mm RB 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x30ml D25mm Rim 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x50ml D29mm FA 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x50ml D29mm RB 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x50ml D29mm Rim 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x50ml D34mm RB 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 1x85ml D38mm RB 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 2x15ml D17mm FA 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 5x4-10ml D16mm Sar 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 7x15ml D17mm RB/Vac 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 7x5-7ml D13mm RB 2/pk

Request a Quote Add To Quote List

Item Number

Description

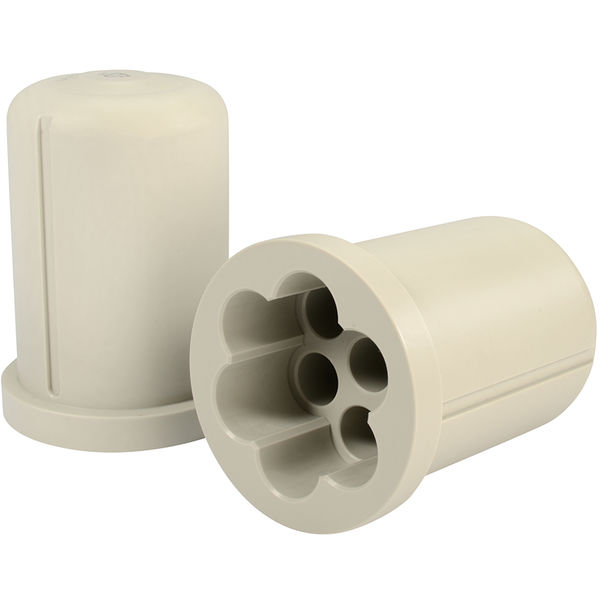

Rack 7x5-7ml D13mm Vac 2/pk

Request a Quote Add To Quote List

Item Number

Description

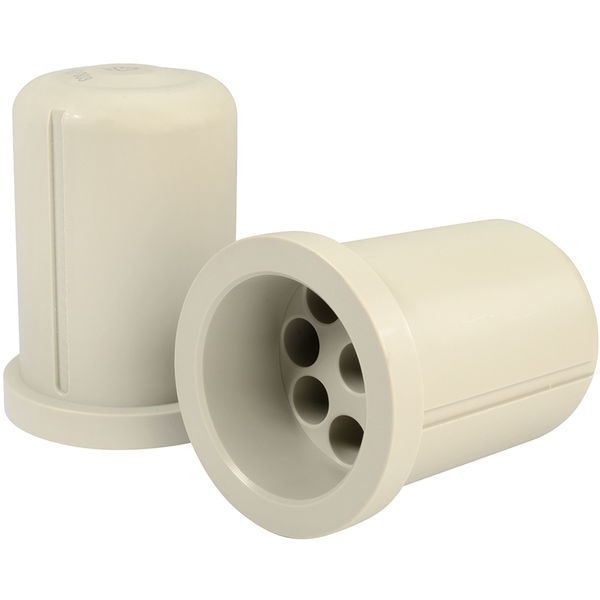

Rack 9x4.5ml D12mm FB 2/pk

Request a Quote Add To Quote List

Item Number

Description

Rack 9x5-7ml D13mm RB 2/pk

Request a Quote Add To Quote List
