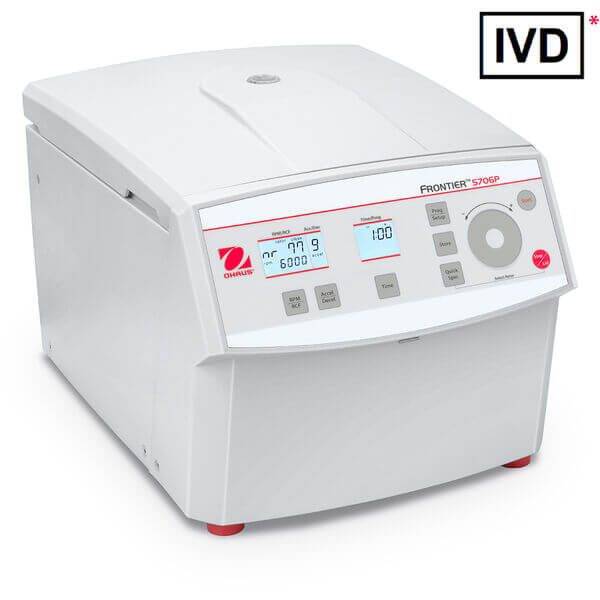

Frontier™ 5000 Series Multi IVD
Reliable and Compact Multi-Function Centrifuges Ideal for General Low Throughput Lab Applications

FC5706P+R78

Maximum Capacity(Rotor) 6 x 50 ml
Maximum Relative Centrifuge Force (x g) 4,427 g
Net Weight 31.3 lb (14.2 kg)
Item Number: 31012115
Overview
Frontier 5000 Multi Centrifuges are reliable compact low-speed general purpose centrifuges ideal for processing a small number of blood tubes as well as urine tubes. The standard rotor options can process both round and conical bottom tubes (including common blood tubes) and can also be adapted easily with accessories to process smaller tubes. Designed with convenient operation in mind, the Multi Centrifuges feature an intuitive interface. The compact profile helps to save valuable bench space in labs.
Applications
Centrifugation
Display
LCD, Backlight, 2 lines
Operation
AC Power (Included)
Communication
N/A
Construction
Brushless quiet motor, small footprint
Design Features
Easy installation design
Specifications
Maximum Capacity(Rotor) 6 x 50 ml
Maximum Relative Centrifuge Force (x g) 4,427 g
Net Weight 31.3 lb (14.2 kg)
Speed Range 200 rpm – 6,000 rpm
Dimensions 21.3 in x 14.3 in x 14.6 in (540 mm x 365 mm x 323 mm) (LxHxW)
Lid lock Mechanical
Power Consumption 70 W
Display LCD with backlight
Rotor Recognition Method Manual
Working Environment 41°F – 95°F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing)
Program memories 99
Running Time Continous;10 sec to 99 h 59 min 59 sec;Quickspin
Refrigeration Range Not applicable
Rotor Compatibility Angle 12 x 15 ml RB/FA ID;Swing out 6 x 5 ml RB;Angle 6 x 50 ml RB/FA;Swing out 4 x 10 ml;Angle 18 x 1.5/2.0 ml
Noise Level ≤ 56 ± 2 dB(A)
Deceleration Gear 10
Safety Certification *CE (EU 2017/746) - For further information on intended use and contraindications, please refer to the instructions for use.;FCC
Acceleration Gear 10
Pre-cool time Not applicable
Power AC Power (Included)
Accessories

Item Number

30130877

Description

Rotor Angle 12x15ml RB/FA

Item Number

83041499

Description

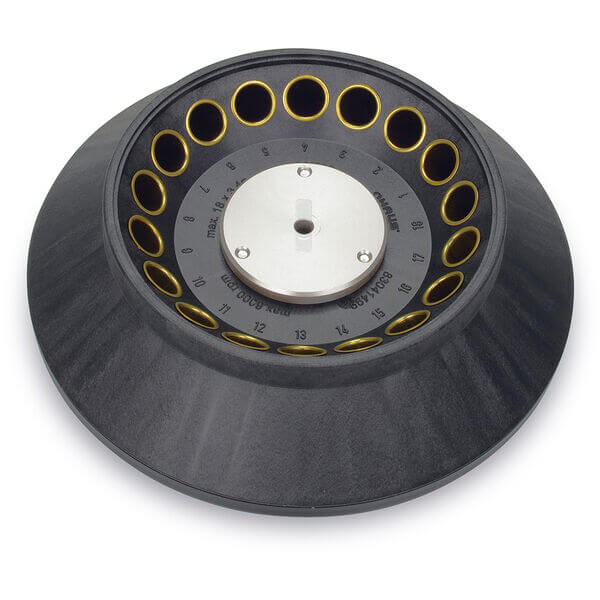

Rotor Angle 18x1.5/2.0ml

Item Number

30130878

Description

Rotor Angle 6x50ml RB/FA

Item Number

31013397

Description

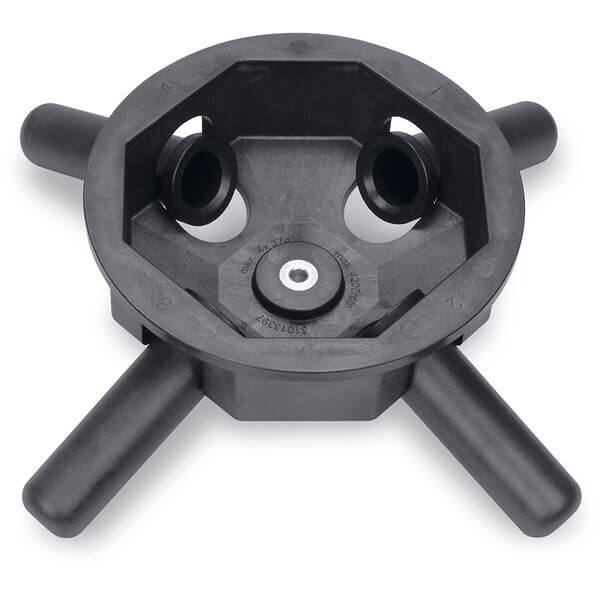

Rotor Swing out 4x10ml

Item Number

30130880

Description

Rotor Swing out 6x5ml RB
