View All Products   |   Bench Scale Bases   /
This item has been discontinued. May we suggest something new:
Enlarge

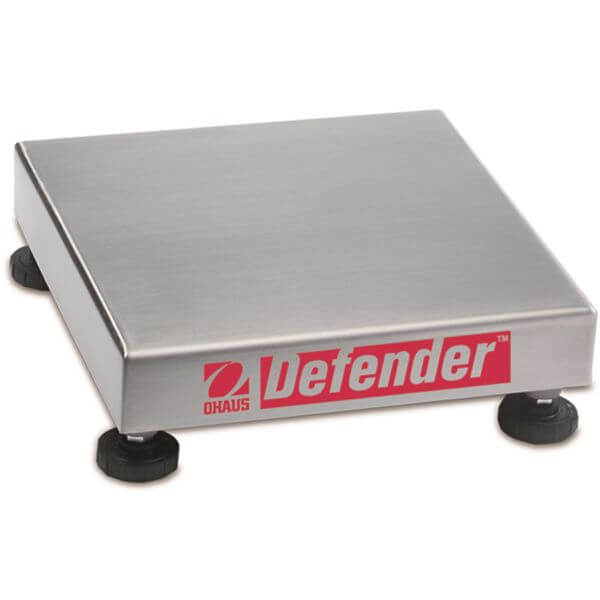

Defender™ Q Series Bases
Top Quality Base for Industrial Weighing.

D250QX

Maximum Capacity 500 lb (250 kg)
Readability 0.05 lb (20 g)
Readability (Certified) 0.1 lb (50 g)
Item Number: 80251924
Overview
OHAUS Defender™ Q Series square Bases offer durability for the most demanding industrial weighing applications.
Applications
N/A
Display
N/A
Operation
N/A
Communication
N/A
Construction
304 grade stainless steel platform, painted carbon steel form-and-weld frame, IP67 aluminum load cell, level indicator
Design Features
150% capacity overload protection
Specifications
Maximum Capacity 500 lb (250 kg)
Readability 0.05 lb (20 g)
Readability (Certified) 0.1 lb (50 g)
Platform Size 24 in x 24 in (610 mm x 610 mm)
Legal for Trade NTEP Certified;  EC Type Approvable;  Measurement Canada Approved
Protection Rating IP67
Dimensions 24 in x 5.4 in x 24 in (610 mm x 137 mm x 610 mm) (LxHxW)
Net Weight 77 lb (35 kg)
Platform Construction Stainless Steel
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Accessories

Item Number

80500723

Description

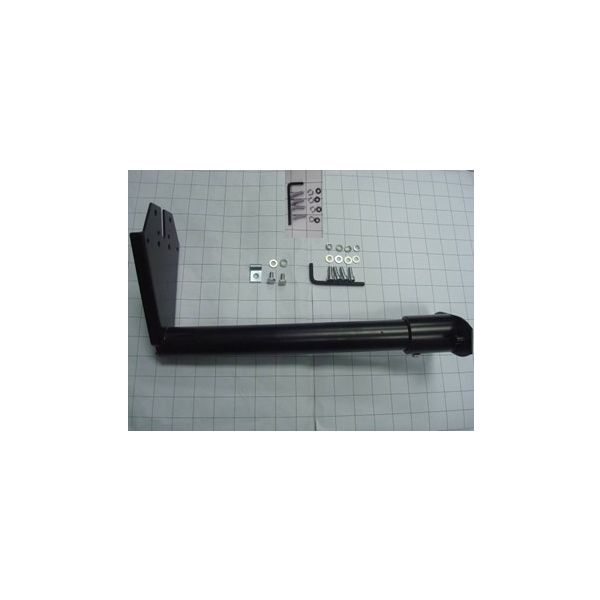

Column Kit, 350mm, Painted, T51P T71P

Request a Quote Add To Quote List Remove From Quote List
