T71P

Resolution	50,000
Resolution (Certified)	10,000
Battery Life	35 Hours with Rechargeable Battery;80 Hours with Disposable Batteries
Item Number:	83998180

Overview
Specs
Accessories
Documents

Overview

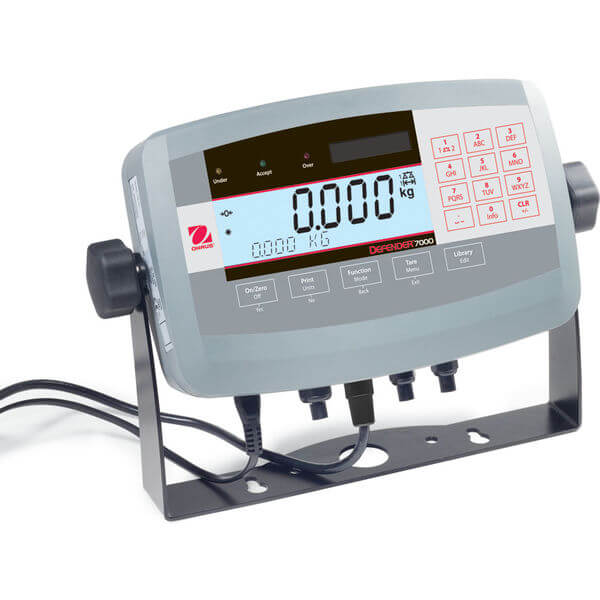

The T71P advanced-operation indicator is ideal for use in conjunction with bench and floor scales for a multitude of applications such as production, packaging, inventory, and shipping and receiving. Its advanced features include maximum configurability, 3-color checkweighing LED’s, totalization mode, a 255-memory library, and statistics print output. The indicator also supports dual-scale operation with the included analog scale base input as well as GMP/GLP data output.

Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Accumulation, Display Hold

Display

Backlit liquid crystal display (LCD) with secondary information line, 3 color checkweighing LEDs

Operation

Power cord (included) or 6 C (LR14) batteries (not included) or rechargeable battery (accessory sold separately)

Communication

Easy access communication port including RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.

Construction

ABS housing and painted steel mounting bracket, non-slip rubber feet

Design Features

User-configurable resolution 50,000d/10,000e, Alibi memory kit (accessory sold separately), five operating languages, OIML Approved NTEP Certified and Measurement Canada Approved

Specifications

Resolution	50,000
Resolution (Certified)	10,000
Battery Life	35 Hours with Rechargeable Battery; 80 Hours with Disposable Batteries
Outputs	DC Relays (Available as an Accessory); AC Relays (Available as an Accessory)
Second Scale Input	Yes
Protection Rating	Not Applicable
Units of Measurement	Metric Tons; Gram; Kilogram; Pound; Custom; Ounce; Pound: Ounce
Legal for Trade	NTEP Certified; EC Type Approvable; Measurement Canada Approved
Dimensions	2.7 in x 8.8 in x 10.2 in (71 mm x 224 mm x 260 mm) (LxHxW)
Display	LCD with backlight
Working Environment	14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Tare Range	To capacity by subtraction
Stabilization Time	2 s
Net Weight	3.3 lb (1.5 kg)
Power	Rechargeable Battery (Not Included); 6 C (LR14) Batteries (Not Included); AC Power (Included)
Communication	2nd RS232 (Available as an Accessory); RS232 (Included); RS422/485 (Available as an Accessory)
Gross Weight (Shipping)	2.4 kg
