ASTM Reference Calibration Weight Sets
Reference Calibration Weights and Mass Standards Adjusted to the Most Precise Tolerances

Weight Set ASTM 1kg-1mg UC No Cert TR

Calibration Certificate No Certificate
ASTM Class Troemner UltraClass
Weight Set Range 1 kg - 1 mg
Item Number: 30390082
Request a Quote ADD TO QUOTE LIST
View All ASTM Reference Calibration Weight Sets Models
Overview
ASTM Reference Calibration Weight Sets
Applications
Use as a primary reference for calibrating other mass standards and use for traceability between national mass standards and ASTM Class 1 weights and lower. This class is appropriate for calibrating high-precision balances with readability as low as 0.01 mg.
Construction
1 g and above - two-piece 500 mg and below - one-piece
Design Features
Weights 50 kg through 1 g are cylindrical with handling knob. Weights 500 mg and below are flat with one end turned up for easy handling.
Specifications
Calibration Certificate No Certificate
ASTM Class Troemner UltraClass
Weight Set Range 1 kg - 1 mg
Set Capacity 2 kg
Set Total Pieces 25

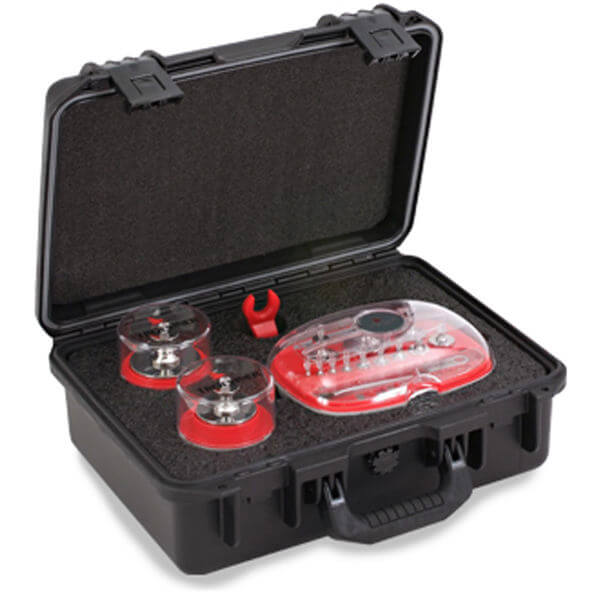

Protective Case Included
Construction 1 g and above are two-piece; 500 mg and below are one-piece
Density at 20°C Below 5 mg are 2.70 g/cm3;500 mg to 5 mg are 7.95 g/cm3;1 g and above are 8.03 g/cm3
Dimensions in Case 6.6 in x 12.7 in x 16.2 in (16.764 cm x 32.258 cm x 41.148 cm) (LxHxW)
Set Contents (2) 2 g;(2) 200 g;(2) 20 mg;500 mg;10 g;(2) 20 g;100 g;100 mg;10 mg;(2) 200 mg;1 g;50 g;5 g;1 kg;5 mg;500 g;(2) 2 mg;50 mg;1 mg
Weight Material 500 mg to 5 mg are 304 Stainless Steel;≥1 g are Troemner Alloy 8;Weights 1 g and above are Troemner Alloy 8. Weights 5 mg through 500 mg are 304 Stainless Steel. Weights below 5 mg are 3003-H14 Aluminum.;Below 5 mg are Aluminum
Wgt Origin (USA) USA
