ASTM Reference Calibration Weight Sets
Reference Calibration Weights and Mass Standards Adjusted to the Most Precise Tolerances

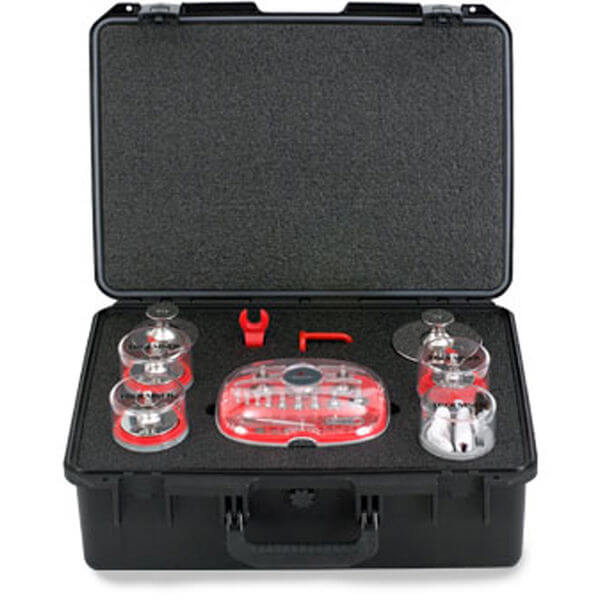

Weight Set ASTM 10kg-1g UC Non-Accrd TR

Calibration Certificate Traceable Certificate
ASTM Class Troemner UltraClass
Weight Set Range 10 kg - 1 g
Item Number: 30390126
Request a Quote ADD TO QUOTE LIST
View All ASTM Reference Calibration Weight Sets Models
Overview
ASTM Reference Calibration Weight Sets
Applications
Use as a primary reference for calibrating other mass standards and use for traceability between national mass standards and ASTM Class 1 weights and lower. This class is appropriate for calibrating high-precision balances with readability as low as 0.01 mg.
Construction
1 g and above - two-piece 500 mg and below - one-piece
Design Features
Weights 50 kg through 1 g are cylindrical with handling knob. Weights 500 mg and below are flat with one end turned up for easy handling.
Specifications
Calibration Certificate Traceable Certificate
ASTM Class Troemner UltraClass
Weight Set Range 10 kg - 1 g
Set Capacity 20 kg
Set Total Pieces 17
Protective Case Included
Construction 1 g and above are two-piece; 500 mg and below are one-piece
Density at 20°C Below 2 kg are 8.03 g/cm3;2 kg and above are 7.95 g/cm3
Dimensions in Case 8.3 in x 16 in x 21.2 in (21.082 cm x 40.64 cm x 53.848 cm) (LxHxW)
Set Contents (2) 2 g;(2) 200 g;10 g;(2) 20 g;100 g;10 kg;1 g;50 g;(2) 2 kg;5 g;1 kg;500 g;5 kg
Weight Material ≥2 kg are 316 Stainless Steel;Below 2 kg are Troemner Alloy;Weights 2 kg and above are 316 Stainless Steel. Weights below 2 kg are Troemner Alloy 8.
Wgt Origin (USA) USA
